3ASC25H209

Description

ABB 3ASC25H209

ABB 3ASC25H209 Product description

ABB 3ASC25H209 is an industrial automation module, belonging to the DATX110 series, which is mainly used in industrial automation systems to enhance the input and output capability of PLC to achieve the control and data acquisition of field equipment. It has the characteristics of high reliability, strong compatibility, small size, etc., suitable for a variety of industrial environments.

Product parameter

Input voltage: 24VDC.

Output voltage: 0-10VDC.

Input channels: 16.

Output channels: 16.

Output type: digital.

Operating temperature range: -40℃ to 70℃.

Protection level: IP20.

Dimensions: Module dimensions are 70 x 105 x 73 mm.

Product specification

Model: 3ASC25H209

Series: DATX110.

Function: Support real-time data acquisition and control, suitable for a variety of industrial scenarios.

series

The module belongs to ABB’s DATX110 series, which is widely used in industrial automation with high reliability and flexibility.

trait

High reliability: To ensure the stable operation of industrial automation system, fast response speed.

Strong compatibility: can be used with a variety of brands of PLC controller.

High performance processor: High performance processor, strong logic computing ability.

Modular design: easy to install, maintain and upgrade.

High level of protection: compliant with IEC 61508 SIL 3 and PLE safety levels, suitable for complex industrial environments.

effect

The main functions of ABB 3ASC25H209 module are:

Signal acquisition: collect the temperature, pressure, switch status and other signals of the field equipment.

Signal processing and control: The collected data is processed and the corresponding control operations are performed according to the instructions.

Data transmission: The data is transmitted to the host computer or the actuator through the communication interface.

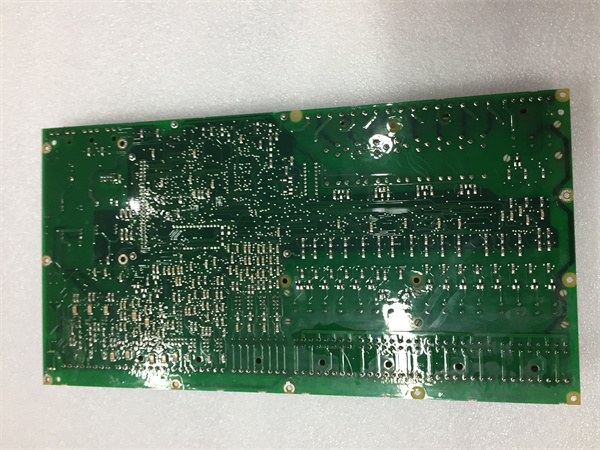

3ASC25H209

use

ABB 3ASC25H209 modules are widely used in the following areas:

Industrial automation: such as machinery manufacturing, packaging, logistics, etc.

Building automation: such as HVAC, lighting, security systems.

Transportation: such as elevators, escalators, transportation systems.

Medical equipment: Used for real-time monitoring and data acquisition of medical equipment.

Energy management: such as power system, oil and gas industry, etc.

3ASC25H209

Application field

Applications of ABB 3ASC25H209 modules include, but are not limited to:

Manufacturing: Used for production line control, machining, etc.

Energy industry: such as petrochemical, coal metallurgy, etc.

Transportation: such as elevator control system, traffic signal system.

Laboratory testing equipment: used for real-time acquisition of experimental data.
