1TGE120020R0405

Description

ABB 1TGE120020R0405

ABB 1TGE120020R0405 Product Description

The ABB 1TGE120020R0405 is a high-performance controller designed for industrial automation that delivers advanced control capabilities and reliable operating performance to meet the needs of modern automation systems. It belongs to the MNS iS series and is characterized by high efficiency, high power factor and high reliability.

Product parameter

Rated voltage: 230V AC.

Rated current: 20A.

Power factor: 0.95.

Capacity: 1200 kvar.

Harmonic content: < Five percent.

Installation mode: wall hanging.

Size: 600mm x 400mm x 200mm.

Weight: 20kg.

Operating temperature range: -20°C to +70°C.

Protection level: IP20.

Product specification

Input voltage: The standard is 230V AC, but some sources mention support for 100 to 240V AC input voltage ranges.

Output voltage: Not explicitly mentioned, but usually consistent with the input voltage.

Power consumption: up to 187VA.

Interface type: Three-pin plug interface according to EN 60321-1/C4.

series

The product iS part of the MNS iS family and is part of ABB’s low voltage distribution system solutions.

trait

High efficiency: Through optimized design and advanced control algorithms, efficient operation is achieved.

High power factor: Ensure the stability and energy saving of the power system.

High reliability: High quality materials and strict manufacturing processes are used to adapt to harsh environments.

Versatility: Multiple control modes including manual, automatic and tension Settings are supported.

High protection level: IP20 protection level, suitable for a variety of industrial environments.

effect

The main functions of ABB 1TGE120020R0405 include:

Data acquisition: real-time monitoring of voltage, current, power and other key parameters.

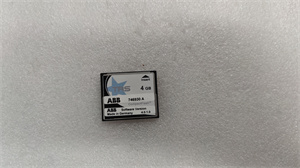

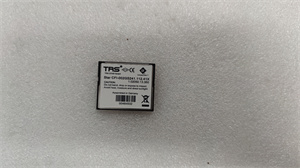

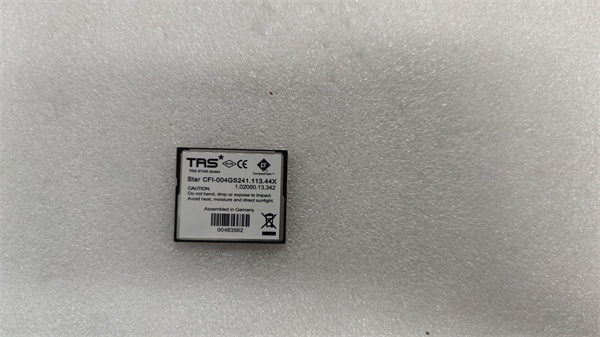

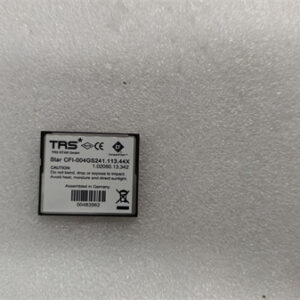

Data store: The collected data is stored in the CF card.

Data management: Provides data analysis and report generation functions.

Remote monitoring and management: Exchange data with the host computer system through the communication interface.

use

The product is mainly used for reactive power compensation devices in low-voltage distribution systems to optimize the performance and stability of power systems. In addition, it is suitable for the following scenarios:

Industrial automation.

Power distribution monitoring for data centers.

Building automation system.

Application field

ABB 1TGE120020R0405 is widely used in the following fields:

Industrial automation: such as machinery manufacturing, oil and gas, chemical industry, textile printing and dyeing.

Power system: Used for reactive power compensation and power distribution.

Commercial and residential buildings: Improve grid quality and reduce voltage fluctuations and power losses.

Data center and building automation: Enabling energy management and equipment monitoring.
