1SVR011718R2500

Description

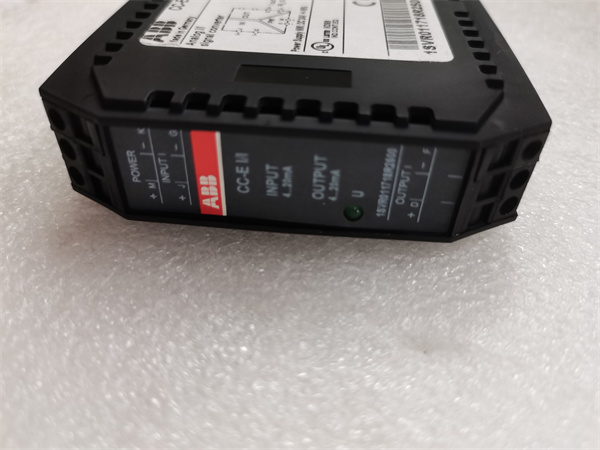

ABB 1SVR011718R2500

ABB 1SVR011718R2500 Product description

The ABB 1SVR011718R2500 is a signal conversion module that is mainly used to convert different types of analog signals (such as voltage, current, etc.) into standard 4-20mA or 0-10V signals for easy transmission and processing. This module features high precision (±0.5% typical value), flexible configuration, electrical isolation, and supports a variety of industrial automation scenarios.

Product parameter

Model: 1SVR011718R2500

Input voltage: 24V DC

Input signal range: 4-20mA or 0-10V

Output signal range: 4-20mA or 0-10V

Electrical isolation: three-way electrical isolation

Protection level: IP20

Operating temperature range: -20°C to +80°C

Dimensions: Height 75mm x width 22.5mm x depth 107mm

Mounting method: DIN rail mounting

Product specification

The module is part of ABB’s CC-E/STD family and is designed for use in industrial automation systems to support multiple signal type conversions with good electrical isolation and high accuracy.

Series and features

Series: CC-E/STD

Features:

High precision signal conversion (±0.5% typical value).

Multichannel signal conversion capability.

Supports the integration and communication of various industrial equipment and systems.

The protection function includes dustproof, waterproof, seismic and so on.

Easy to install and maintain, supports DIN rail mounting.

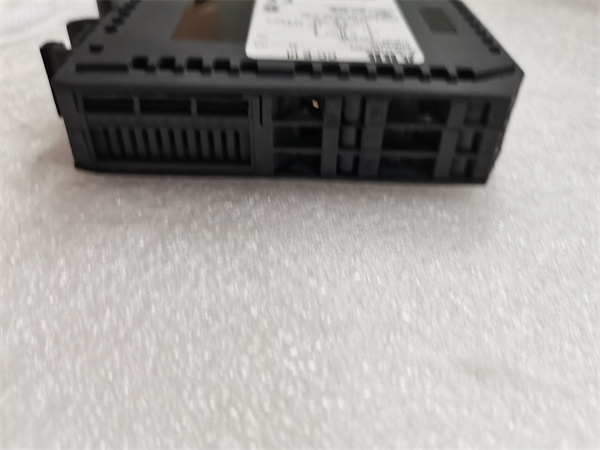

1SVR011718R2500

Function and use

The main functions of ABB 1SVR011718R2500 are:

Signal conditioning: analog signal amplification, attenuation, filtering and other processing.

Signal isolation: Prevent interference through electrical isolation to ensure the safety of signal transmission.

Signal conversion: to convert different types of analog signals into standardized signals for easy data acquisition and control.

1SVR011718R2500

Application field

The module is widely used in the following areas:

Industrial automation: for process control, data acquisition, man-machine interface, etc.

Energy Management: Monitoring and optimizing energy use in the power, petroleum, chemical and other industries.

Robot control: Support for signal processing in the robot control system.

Building automation: for the control of lighting and air conditioning systems.

Other industrial scenes: such as food and beverage, metallurgy and other industries.
