1SVR011700R0000

Description

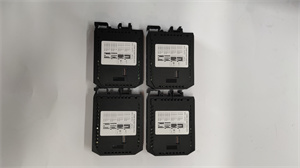

ABB 1SVR011700R0000

ABB 1SVR011700R0000 Product Description

The ABB 1SVR011700R0000 is a high-performance analog signal conversion module in the CC-E/STD family. It is mainly used to convert analog signals such as current or voltage into standard output signals (such as 4-20mA or 0-10V), and is widely used in industrial automation systems. The module features high precision (±0.5%), flexible configuration, industrial design, and supports signal conditioning, isolation, and amplification.

Product parameter

Input type: Current (0-10mA or 0-20mA) or voltage (0-5V or 0-10V).

Output type: Standard analog signal (4-20mA or 0-10V).

Power supply voltage: 24V DC.

Operating temperature range: -40°C to +85°C.

Protection level: IP20.

Dimensions: 76 x 33 x 110 mm.

Weight: 0.15kg.

Product specification

Mounting method: DIN rail mounting.

Number of channels: Single channel.

Electrical isolation: three-end electrical isolation to ensure the safety and stability of signal transmission.

Conversion accuracy: ±0.5%.

1SVR011700R0000

series

The module is part of ABB’s CC-E/STD family, part of a common standard analog signal converter for industrial automation.

trait

High accuracy: The conversion accuracy is up to ±0.5%, ensuring the accuracy and reliability of the signal.

Flexible configuration: Supports a variety of input and output signal types and can be configured via DIP switches.

Industrial design: suitable for harsh environment, with good anti-interference ability.

Easy installation: Supports DIN rail mounting for easy integration into existing systems.

Safety protection: Provides three-end electrical isolation to enhance the safety and stability of the system.

1SVR011700R0000

effect

The main functions of ABB 1SVR011700R0000 include:

Signal conditioning: The analog signal is amplified, filtered and isolated.

Signal conversion: The conversion of different types of analog signals (such as current, voltage) into standard output signals.

Data acquisition and transmission: Used for signal acquisition and transmission in process control systems, building automation systems and industrial automation equipment.

use

The module is widely used in the following areas:

Industrial automation: Used for signal conversion and processing in industrial automation equipment.

Process control: Measurement and conversion of signals in process control systems such as temperature, pressure, flow, etc.

Energy management: Used for energy monitoring and control in power, petroleum, chemical and other industries.

Environmental monitoring: Used for data acquisition and transmission in environmental monitoring systems.

Application field

ABB 1SVR011700R0000 is mainly used in the following industries:

Industrial automation: including manufacturing, energy industry, transportation industry, etc.

Power industry: for the control and protection of power systems.

Building automation: Used for sensor signal processing in building control systems.

Environmental monitoring: Used for data acquisition and transmission in environmental monitoring equipment.
