1MRK002311-AAR02

Description

ABB 1MRK002311-AAR02

ABB 1MRK002311-AAR02 Product Description

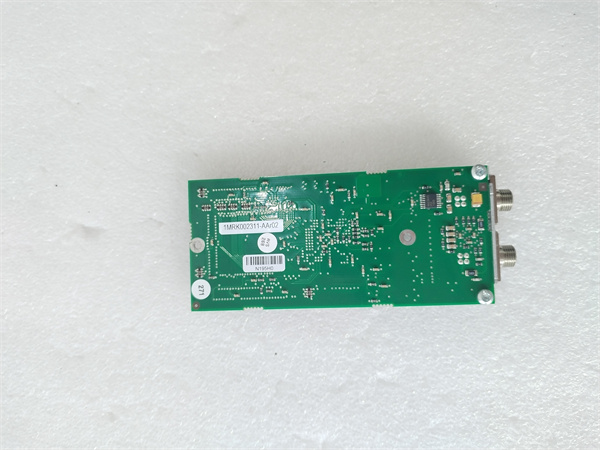

ABB 1MRK002311-AAR02 is a remote data communication module based on optical fiber technology, designed to achieve efficient and stable data transmission. It is part of the ABB Relion® family and is used with ABB REx670 V1.1 relays, especially for data exchange needs in large industrial facilities.

Product parameter

Model: 1MRK002311-AAR02.

Working voltage: 220V.

Output frequency: 50kHz.

Supported bus type: PCI to VME bridge module, support 32-bit PCI bus and VMEbus 64-bit data transmission.

Dimensions: 74 mm x 370 mm x 361 mm.

Weight: About 1.52 kg.

Protection level: IP20.

Operating temperature range: -20℃ to 60℃.

Product specification

Transmission distance: suitable for long-distance transmission, suitable for large-scale industrial facilities.

Signal conversion function: Support signal conversion (digital signal conversion to analog signal or vice versa).

Signal isolation function: provides signal isolation to prevent interference.

Remote I/O support: Expand remote input/output capabilities.

series

The product belongs to the ABB Relion® family and is part of the AC800F family.

1MRK002311-AAR02

trait

Optical fiber communication: The use of optical fiber technology to achieve long-distance reliable data transmission.

High reliability: Designed for harsh industrial environments with high reliability and anti-interference capability.

Modular design: Supports flexible configuration and expansion.

Diagnostic function: It has the function of monitoring the status of PCI bus and VMEbus to find and solve problems in time.

1MRK002311-AAR02

effect

The main functions of ABB 1MRK002311-AAR02 are:

Realize remote location signal acquisition and control.

Provides signal conversion and isolation to prevent interference.

Expanded remote I/O capabilities and expanded input/output capabilities of the Symphony Plus control system.

use

The module is widely used in the following areas:

Process control: Used for parameter monitoring and control in chemical industry, metallurgy, machinery manufacturing and other industries.

Machine automation: Controlling the movement and actuators of robots in machinery manufacturing, packaging and other industries.

Building automation: used to control lighting, air conditioning and other equipment in buildings.

Industrial automation systems: used as part of control systems to monitor and control various parameters and equipment.

Power system: Used for monitoring and control of power systems.

Traffic system: Used in rail transit, automatic parking and other control systems.

Application field

ABB 1MRK002311-AAR02 is mainly used in the following industries:

Industrial automation: such as chemical industry, metallurgy, machinery manufacturing, etc.

Power system: Used for monitoring and control of power networks.

Transportation system: rail transit, automated parking lot, etc.

National defense, aerospace, medical and other fields.
